How to Integrate a Trunk Organizer with Your Car Alarm and Telematics System: A Step‑by‑Step DIY Guide

Introduction

One will discover how to transform a simple storage solution into an active component of a vehicle security and telematics network. The guide explains the rationale for linking a trunk organizer with alarm sensors and data‑transmission hardware. By following the procedure, one can achieve faster incident reporting, improved cargo protection, and a cleaner interior. The result is a vehicle that is both organized and intelligently connected.

What You’ll Need

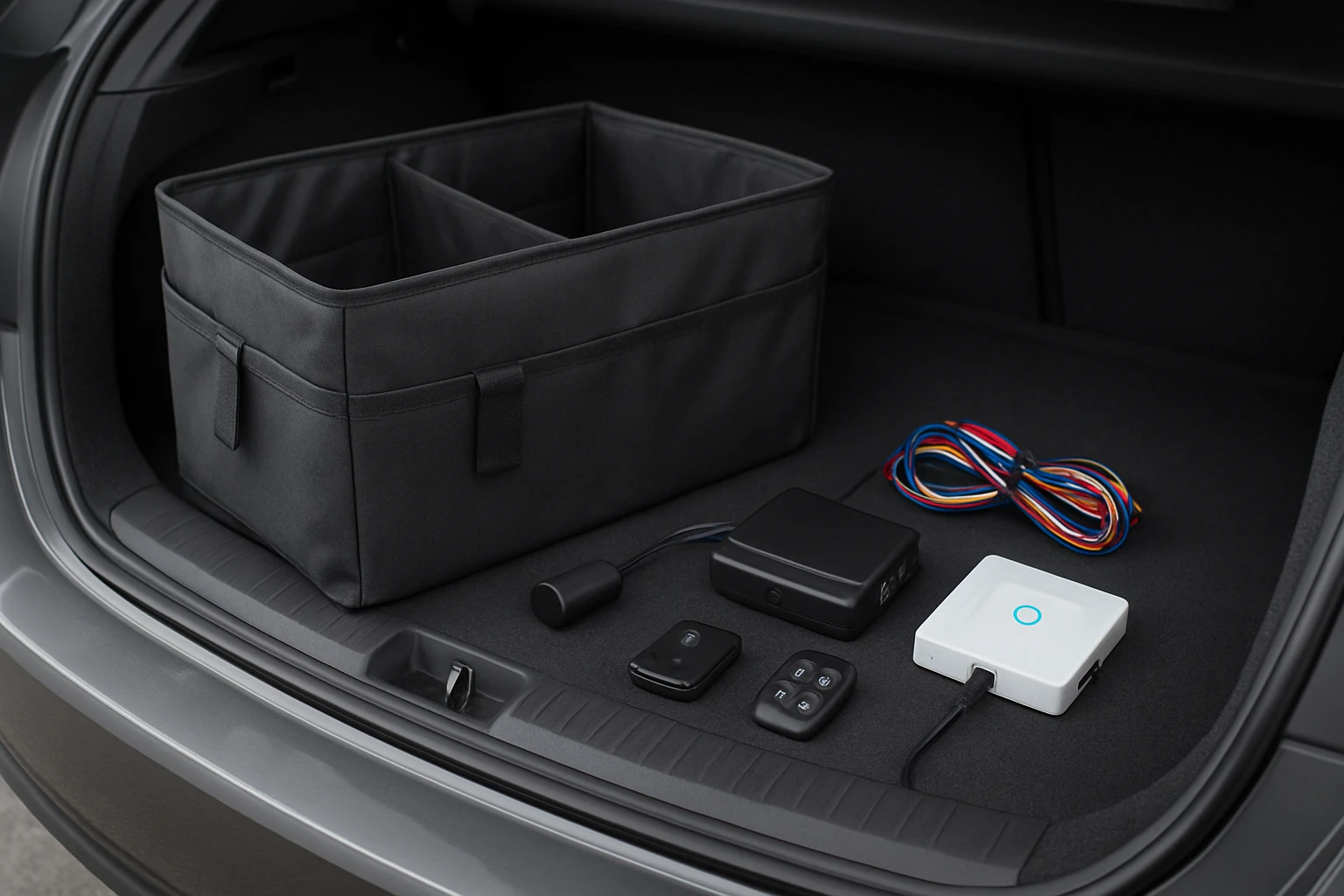

• Deosk Waterproof Trunk Organizer – 50 L capacity, waterproof 600D polyester, $18.99, 4.5/5 rating.

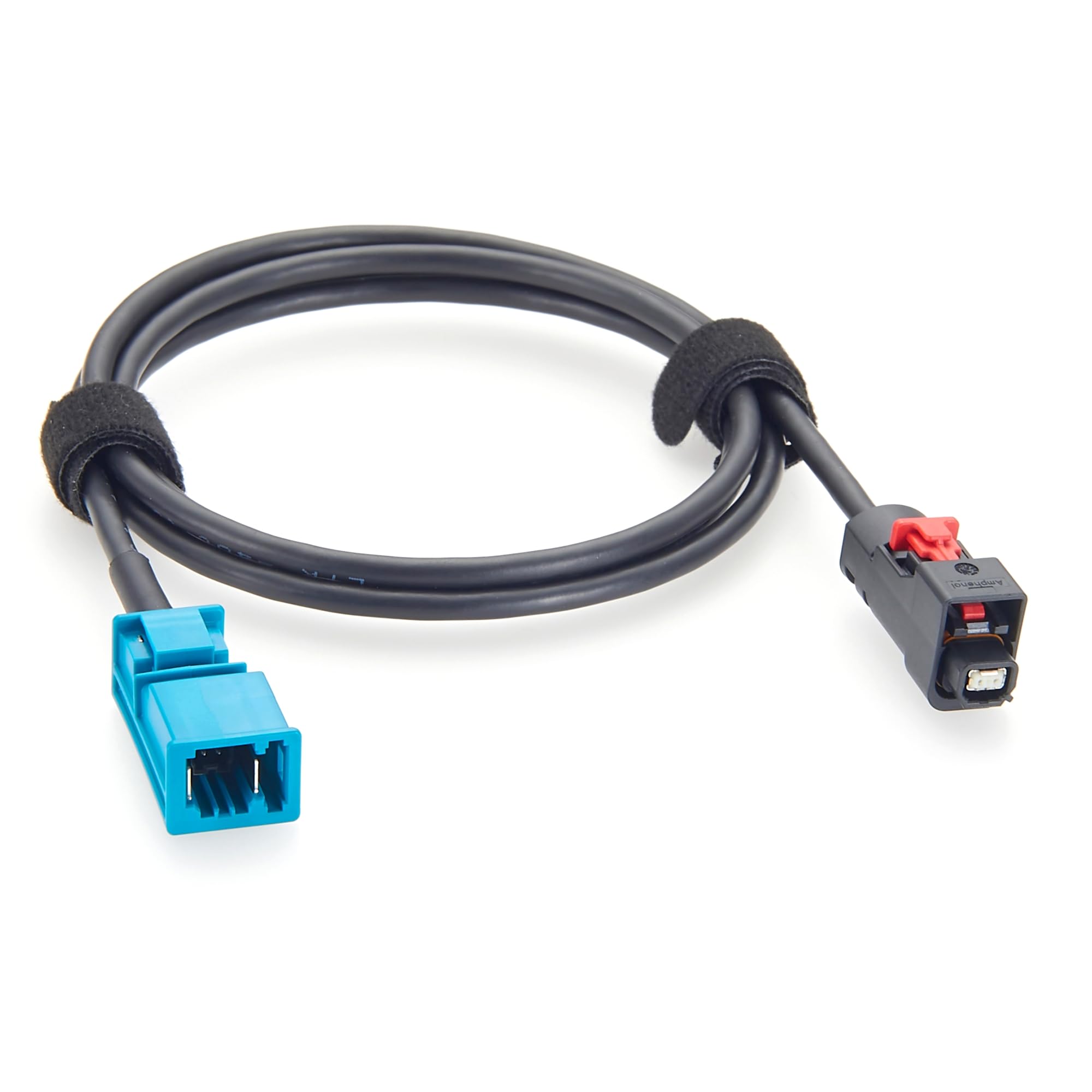

• Amphenol NETBridge Ethernet Cable – 1 m shielded automotive cable, $64.99, 5/5 rating.
• Thinkware 5‑Channel Multiplexer Box – expands dash‑cam to five channels, $99.99, 3.8/5 rating.
• Standard screwdriver set, zip ties, electrical tape, and a basic wiring diagram for the vehicle alarm.

Step 1: Prepare the Trunk Area

The first step is to clear the trunk and inspect the existing cargo space. One should clean the area thoroughly to ensure that the waterproof material of the organizer will not be compromised by debris. Then, position the Deosk Waterproof Trunk Organizer so that its reinforced handles are accessible for future wiring. The organizer measures 22 in × 12.5 in × 10.75 in and provides approximately 50 L of storage, which is sufficient for tools, emergency kits, and spare parts while remaining resistant to water and dirt.

It is advisable to secure the organizer to the trunk floor using the built‑in slots and a few zip ties. This prevents movement during sudden braking and ensures that any attached sensors remain in a fixed position. The waterproof 600D polyester material also protects any electronic components from moisture that may accumulate during rainy conditions. By completing this step, the trunk becomes a stable platform for the subsequent integration of alarm and telematics hardware.

Step 2: Install Alarm Sensors Within the Organizer

Next, one should install a motion sensor or shock sensor inside the organizer to detect unauthorized movement of cargo. The sensor wires are routed through the organizer's interior compartments, allowing the alarm system to monitor the trunk without exposing the sensor to external elements. Use the provided zip ties to bundle the wires neatly along the organizer's sidewalls.

After positioning the sensor, connect its output leads to the vehicle’s alarm control module. This connection typically requires a standard 2‑wire harness, but for enhanced reliability, the Amphenol NETBridge Ethernet Cable can be employed as a shielded conduit. The cable offers 100 Ohm impedance, a frequency range up to 10 GHz, and double‑wall heat‑shrink tubing, which together provide superior EMI/RFI shielding and durability in the harsh automotive environment. By using this cable, one ensures that sensor signals remain clear even when the vehicle is operating near high‑frequency devices such as infotainment systems.

The cable is cut to the required length, stripped at both ends, and crimped onto the sensor’s connector and the alarm module’s input port. The NETBridge cable is rated for temperatures from –40 °C to +105 °C, guaranteeing operation in extreme climates. Once the connections are verified with a multimeter, the alarm system can be programmed to trigger an audible alert and a notification to the telematics unit when the organizer is moved without authorization.

Step 3: Integrate the Multiplexer Box for Telematics Communication

Having established a sensor link, the next phase involves routing the alarm data to the vehicle’s telematics system. The Thinkware 5‑Channel Multiplexer Box serves as a hub that aggregates video streams, sensor inputs, and GPS data into a single data feed. The box measures 2.56 × 2.56 × 0.69 in and can be mounted behind the trunk liner or under the rear seat, where it remains out of sight yet accessible for wiring.

Begin by connecting the Ethernet cable from the alarm sensor to one of the multiplexer’s AV‑IN ports using an appropriate adapter. Then, attach the dash‑cam video feed to another AV‑IN port, and connect the vehicle’s power source (12‑24 V) to the box’s power input. The multiplexer includes a piano‑code switch that allows the user to configure composite screens, enabling the driver to view alarm status alongside video streams on the main dash‑cam display.

The Thinkware box supports full HD 1920 × 1080 recording at 30 fps on up to five channels, which means that the alarm trigger can be recorded as a separate video overlay. This feature is valuable for fleet managers who require documented evidence of cargo tampering. After all connections are secured, power the system and verify that the alarm status appears on the dash‑cam interface. Adjust the composite view using the piano‑code switch until the alarm indicator is clearly visible.

Step 4: Test the Integrated System

Testing ensures that each component functions as intended and that the data flow between the organizer, alarm, and telematics unit is reliable. First, simulate an intrusion by moving the organizer rapidly; the motion sensor should activate the alarm and send a signal through the Ethernet cable to the multiplexer. Observe the dash‑cam screen for the alarm overlay and listen for the audible alarm tone.

Next, verify that the telematics platform receives a push notification or SMS alert. Most telematics services provide a web portal where one can view real‑time events; confirm that the event timestamp, location, and sensor status are recorded accurately. Finally, test the system under different temperature conditions by starting the engine and allowing the vehicle to reach operating temperature, then repeat the intrusion simulation to ensure that the cable and connectors maintain performance.

If any step fails, consult the troubleshooting section below. Successful testing confirms that the trunk organizer now functions as an active security node within the vehicle’s broader telematics ecosystem.

Tips & Pro Tips

• Use zip ties with a minimum tensile strength of 150 N to secure cables; this prevents loosening due to vibration.
• Apply a small amount of silicone sealant around the Ethernet cable entry point to maintain the waterproof integrity of the trunk.
• When mounting the multiplexer box, ensure adequate ventilation to avoid overheating during prolonged operation.
• Document the wiring diagram in the vehicle’s service manual folder for future maintenance or upgrades.

Troubleshooting

Problem: Alarm sensor does not trigger.

Solution: Verify that the sensor is firmly seated inside the organizer and that the connector pins are clean. Use a multimeter to check continuity between the sensor leads and the alarm module.

Problem: No alarm overlay appears on the dash‑cam screen.

Solution: Confirm that the Ethernet cable is correctly terminated on both ends and that the multiplexer box is set to the appropriate AV‑IN channel via the piano‑code switch.

Problem: Intermittent signal loss during high‑speed driving.

Solution: Ensure that the shielded Ethernet cable is not twisted or pinched near the vehicle’s chassis. Re‑route the cable away from high‑current power wires.

Conclusion

One has learned how to prepare a waterproof trunk organizer, install an alarm sensor, route a shielded Ethernet cable, and connect a five‑channel multiplexer box to create a cohesive security and telematics solution. The integration enhances cargo protection, provides documented evidence of tampering, and delivers real‑time alerts to fleet managers or vehicle owners. By following the step‑by‑step instructions, one can achieve a professional‑grade installation without the need for specialized automotive technicians. The guide encourages further experimentation with additional sensors or camera angles to tailor the system to specific operational requirements.
